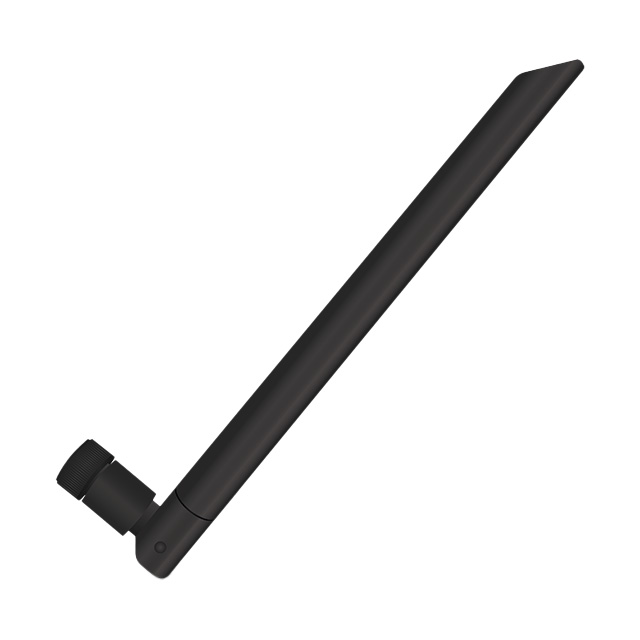

| Part number: | X1005619-4GDSMB |
| Description: | 4G/CELLULAR EXTERNAL BLADE ANTEN |
| Manufacturer | KYOCERA AVX |
| Encapsulation | Bag |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "KYOCERA AVX" |
| Mounting Type | Connector Mount |
| Frequency Range | 698MHz ~ 800MHz, 800MHz ~ 960MHz, 1.71GHz ~ 2.7GHz |
| Applications | 4G, LTE |
| Gain | 1.8dBi, 1.8dBi, 5.2dBi |
| Termination | SMA Male |
| Number of Bands | 3 |
| Antenna Type | Whip, Straight |
| Height (Max) | 7.008" (178.00mm) |
| Return Loss | 2.5dB, 3dB, 13.5dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 749MHz, 880MHz, 2.205GHz |
| RF Family/Standard | Cellular |
| Power - Max | 5 W |
|
