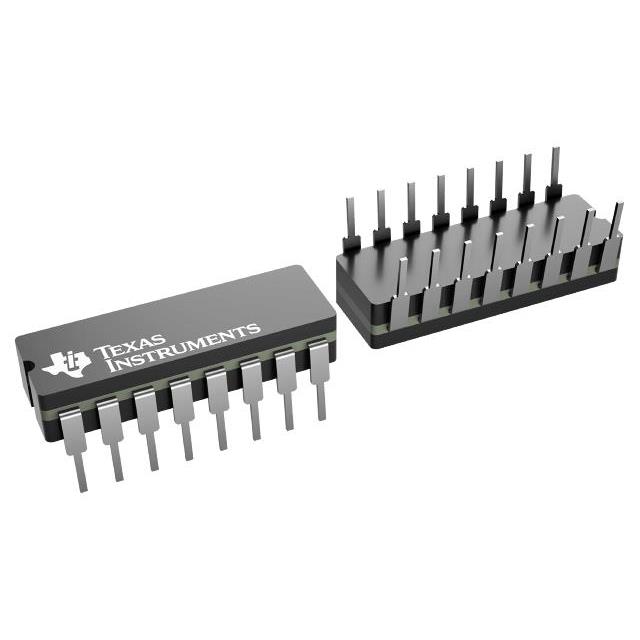

| Part number: | UC1524AL |
| Description: | ADVANCED 40 VCC, DOUBLE ENDED 30 |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 20-CLCC |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 10Hz ~ 10kHz |
| Topology | Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 40V |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Ramp |
| Output Phases | 1 |
| Duty Cycle (Max) | 45% |
| Clock Sync | No |
| Number of Outputs | 2 |
|
