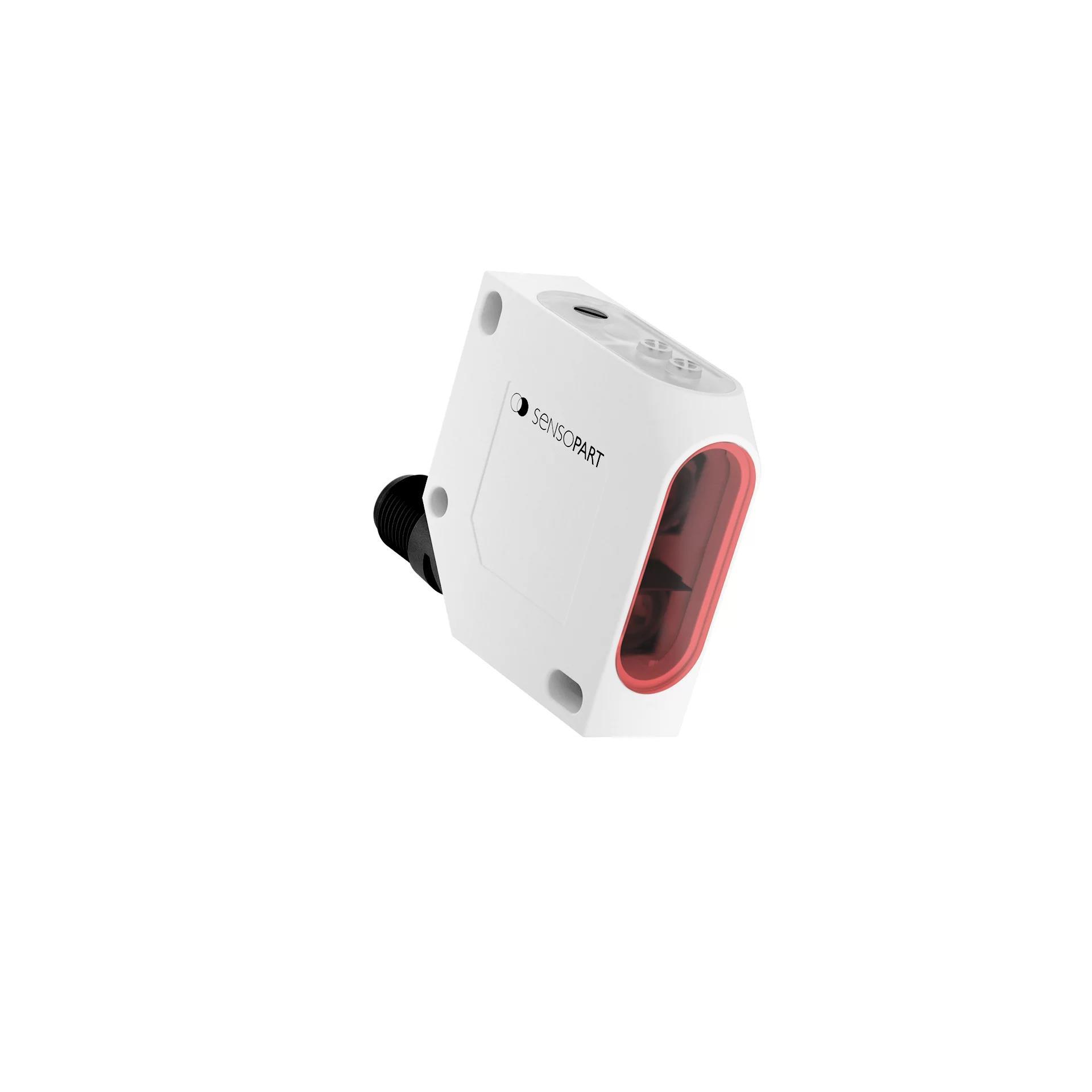

Part number: | 572-51032 - FT 50 IH-PAK4 |
Description: | Diffuse infrared sensor with bac |
Manufacturer | SensoPart |
Encapsulation | Retail Package |
Quantity | 1 |
RoHS | 1 |
TYPE | DESCRIPTION |
Mfr | "SensoPart" |
Adjustment Type | Adjustable, Potentiometer |
Sensing Distance | 5.906" ~ 23.622" (150mm ~ 600mm) |
Sensing Method | Diffuse, Background Suppression |
Operating Temperature | -20°C ~ 60°C |
Output Configuration | NPN/PNP-NC/NO |
Voltage - Supply | 10V ~ 30V |
Response Time | 625µs |
Ingress Protection | IP67 |
Cable Length | 118.10" (3m) |
Connection Method | Cable |
Light Source | Infrared (880nm) |
