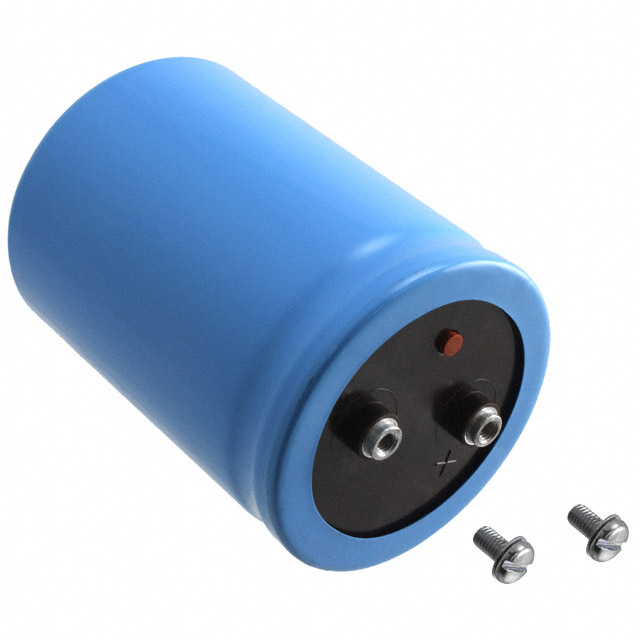

| Part number: | 125332U030AA1A |
| Description: | ALUM-SCREW TERMINAL |
| Manufacturer | Illinois Capacitor (Cornell Dubilier Electronics) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Illinois Capacitor (Cornell Dubilier Electronics)" |
| Tolerance | -10%, +75% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | 0.500" (12.70mm) |
| ESR (Equivalent Series Resistance) | 22mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Height - Seated (Max) | 2.187" (55.55mm) |
| Capacitance | 3.3 mF |
| Voltage - Rated | 30 V |
| Ripple Current @ Low Frequency | 9.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.5 A @ 20 kHz |
|
