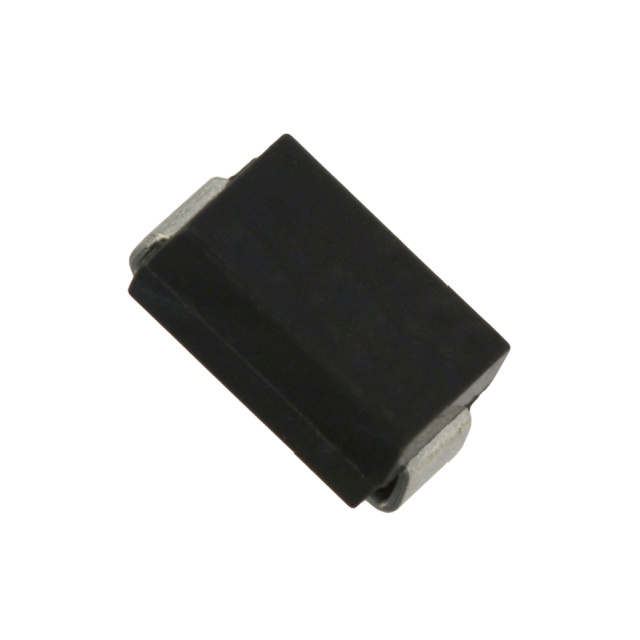

| Part number: | PU4DB |
| Description: | 25NS, 4A, 200V, ULTRA FAST RECOV |
| Manufacturer | TSC (Taiwan Semiconductor) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TSC (Taiwan Semiconductor)" |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 78pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 4A |
| Supplier Device Package | DO-214AA (SMB) |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 4 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 200 V |
|
