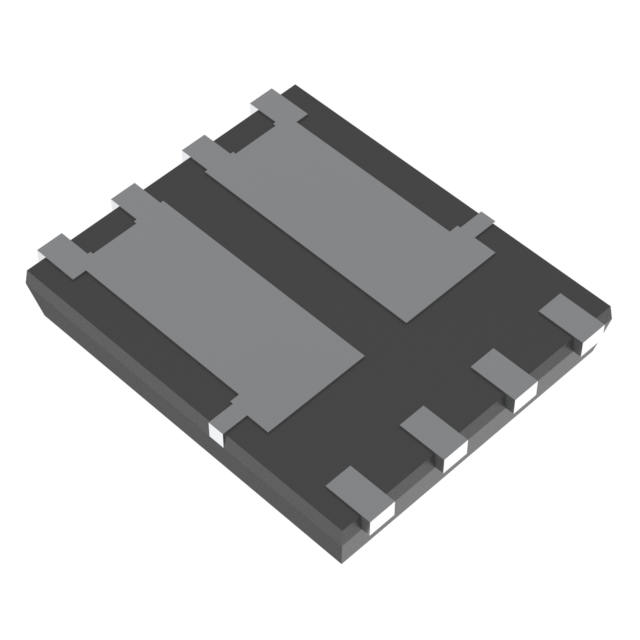

| Part number: | HP8JE5TB1 |
| Description: | -100V 12.5A, DUAL PCH+PCH, HSOP8 |
| Manufacturer | ROHM Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ROHM Semiconductor" |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 3W (Ta), 21W (Tc) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 12.5A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1370pF @ 50V |
| Rds On (Max) @ Id, Vgs | 127mOhm @ 4.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | 8-HSOP |
|
