| Part number: | DMP4026LK3-13 |
| Description: | MOSFET BVDSS: 31V~40V TO252 T&R |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

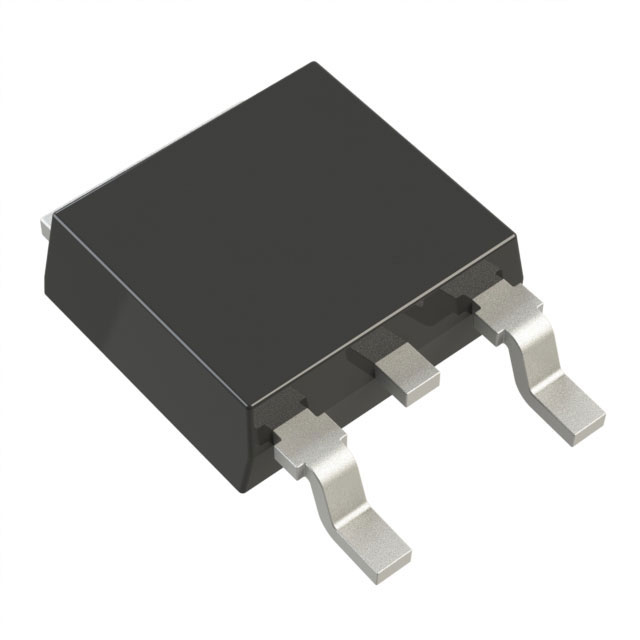

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 3A, 10V |
| Power Dissipation (Max) | 3.5W (Ta), 70W (Tc) |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Supplier Device Package | TO-252 (DPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 45.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2064 pF @ 20 V |
|
