| Part number: | DMT10H072LDV-7 |
| Description: | MOSFET BVDSS: 61V~100V POWERDI33 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

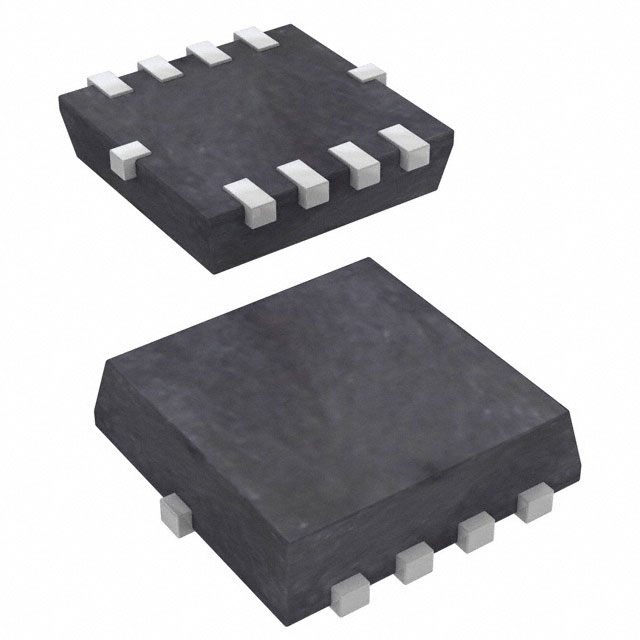

| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1W (Ta) |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 228pF @ 50V |
| Rds On (Max) @ Id, Vgs | 66mOhm @ 4.5A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 4.5nC @ 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | PowerDI3333-8 (Type UXC) |
|
