| Part number: | GPI90007DF88 |
| Description: | GaNFET N-CH 900V 7A DFN8x8 |
| Manufacturer | GaNPower |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "GaNPower" |

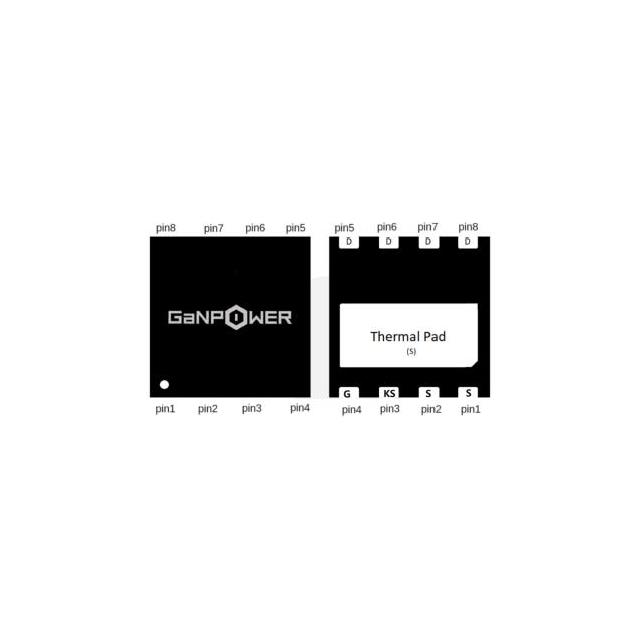

| Package / Case | 8-DFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7A |
| Rds On (Max) @ Id, Vgs | 225mOhm @ 1.4A, 6V |
| Vgs(th) (Max) @ Id | 1.2V @ 3.5mA |
| Supplier Device Package | 8-DFN (8x8) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V |
| Vgs (Max) | +7.5V, -12V |
| Drain to Source Voltage (Vdss) | 900 V |
| Gate Charge (Qg) (Max) @ Vgs | 2.1 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 400 V |
|
