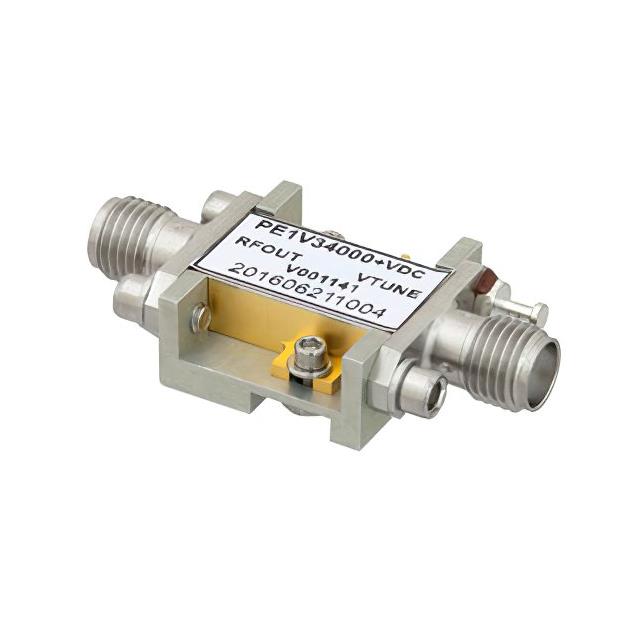

| Part number: | PE1V34000 |
| Description: | Voltage Controlled Oscillator (V |
| Manufacturer | Pasternack |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Pasternack" |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 1.390" L x 0.700" W (35.31mm x 17.78mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 12V |
| Height | 0.291" (7.38mm) |
| Frequency Range | 4 ~ 8GHz |
| 2nd Harmonic, Typ (dBc) | -10 |
| Frequency - Center | 6GHz |
| Icc Max | 195mA (Typ) |
| Pushing (MHz/V) | 0.2 |
| Phase Noise Typ (dBc/Hz) | -75 |
| Power (dBm) | 20 -3 |
| Tuning Voltage (VDC) | 0 V ~ 18 V |
|
