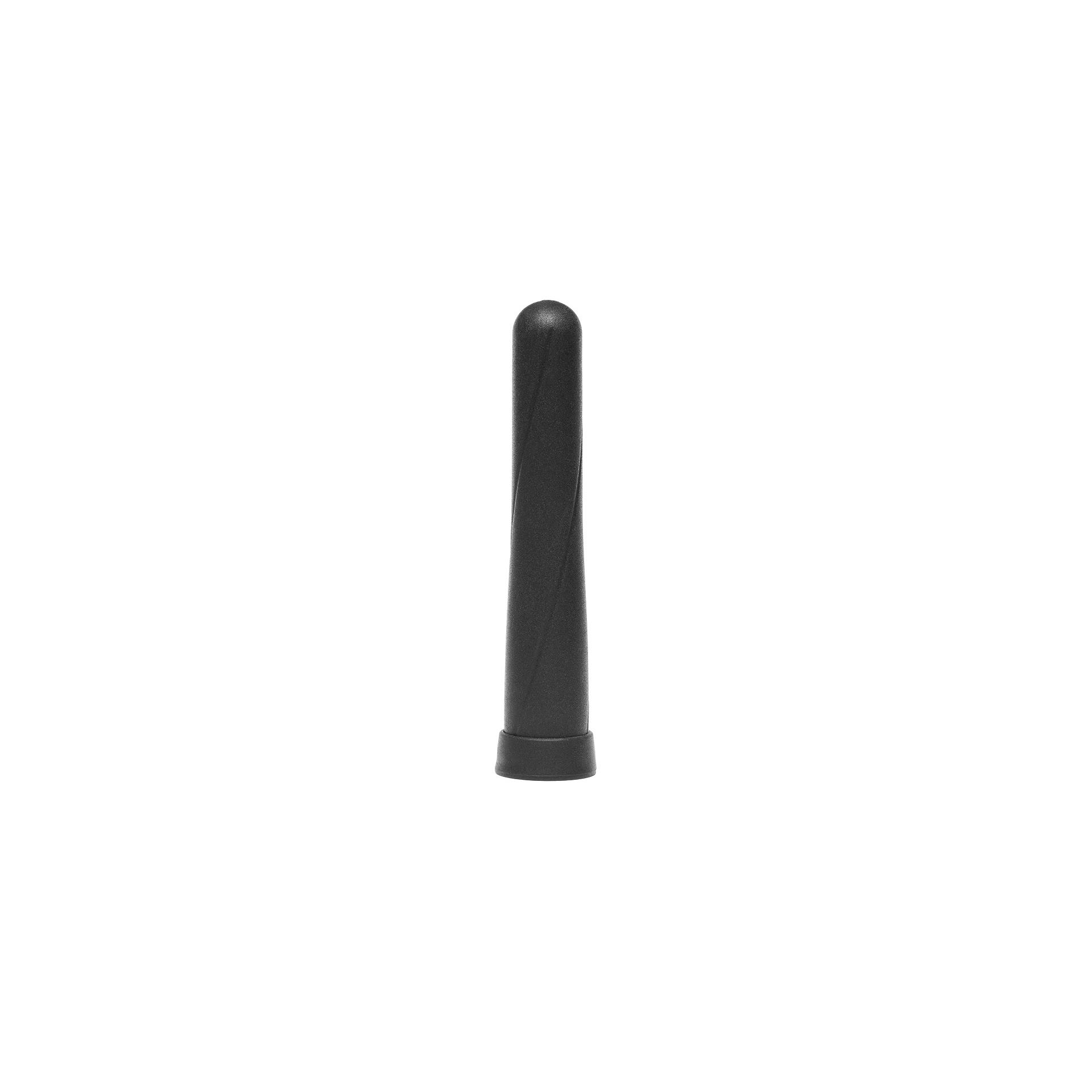

| Part number: | 2J0801CF-C40G |
| Description: | GLADIUS ACTIVE GNSS/BEI STUBBY S |
| Manufacturer | 2J Antennas |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "2J Antennas" |
| Features | Filter |
| Mounting Type | Connector Mount |
| Frequency Range | 1.598GHz ~ 1.606GHz |
| Applications | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS |
| Gain | 3.5dBi, 3.4dBi, 3.2dBi |
| Termination | SMA Male |
| Number of Bands | 3 |
| Antenna Type | Whip, Straight |
| Height (Max) | 2.874" (73.00mm) |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.561GHz, 1.575GHz, 1.602GHz |
| RF Family/Standard | Navigation |
| Power - Max | 24.3 mW |
|
