| Part number: | FM51FP1012 |

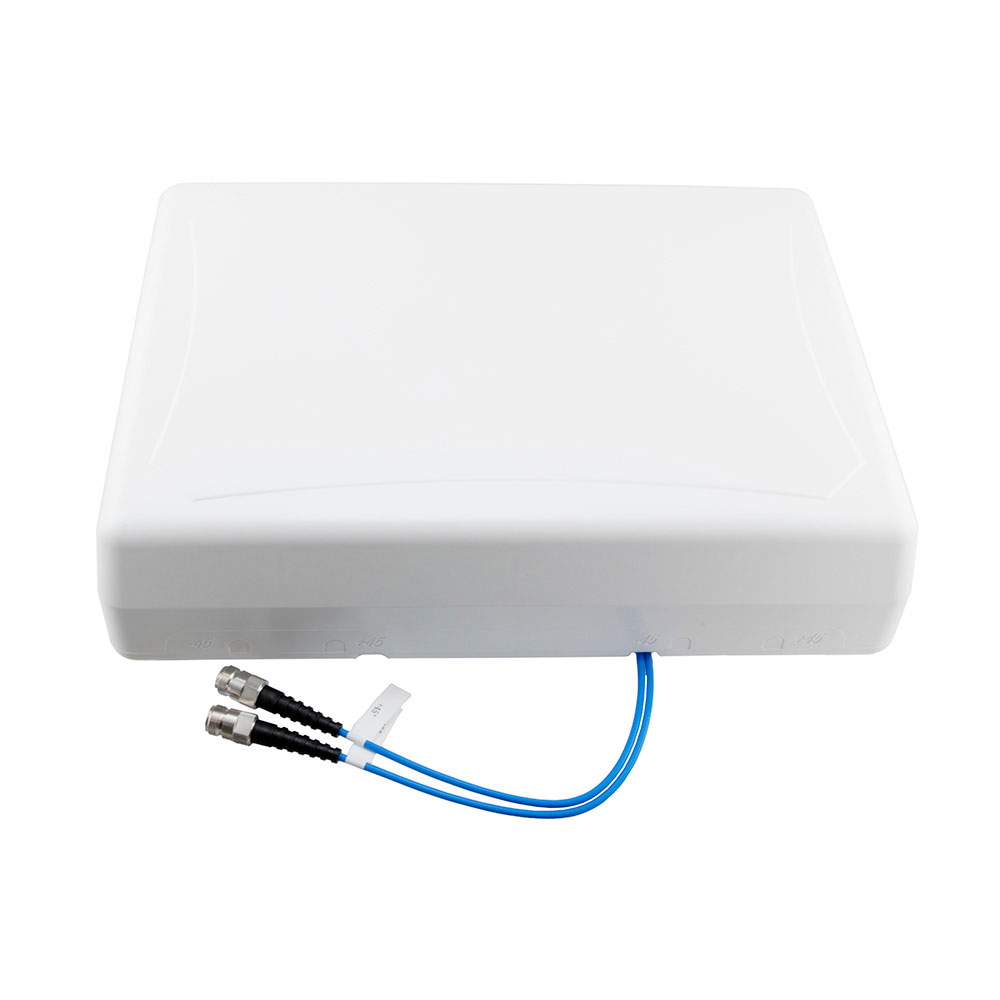

| Description: | ANTENNA TYPE N JACK 617 MHZ-6 GH |
| Manufacturer | Fairview Microwave |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Fairview Microwave" |
| Features | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m |
| Mounting Type | Bracket Mount |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9GHz ~ 6GHz |
| Applications | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
| Gain | 5.5dBi, 6dBi, 7dBi, 6dBi, 6.5dBi |
| Termination | N Type Female |
| Number of Bands | 5 |
| VSWR | 2 |
| Antenna Type | Panel |
| Height (Max) | 0.980" (24.89mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 829MHz, 2.205GHz, 3.75GHz, 5.45GHz |
| RF Family/Standard | Cellular |
| Power - Max | 50 W |
|
