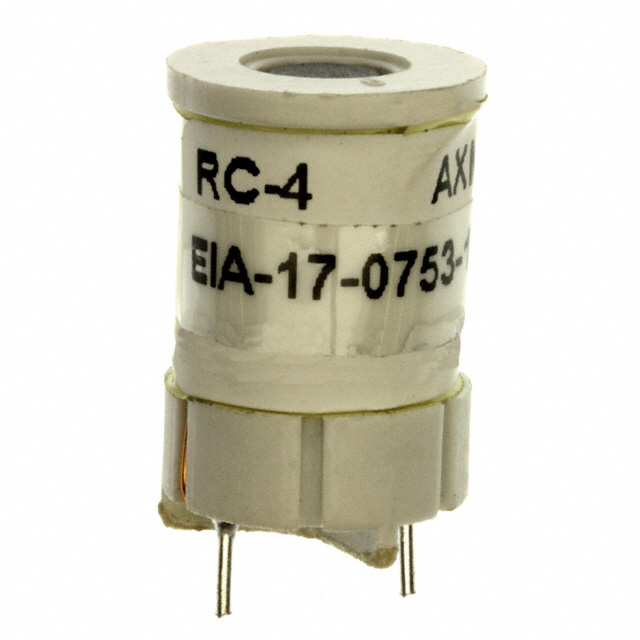

| Part number: | RC-4 |
| Description: | FIXED IND 1.5MH 500MA 1.53OHM TH |
| Manufacturer | Triad Magnetics |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Tolerance | ±10% |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 0.600" Dia (15.24mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 1.53Ohm |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.930" (23.62mm) |
| Inductance | 1.5 mH |
| Current Rating (Amps) | 500 mA |
|
