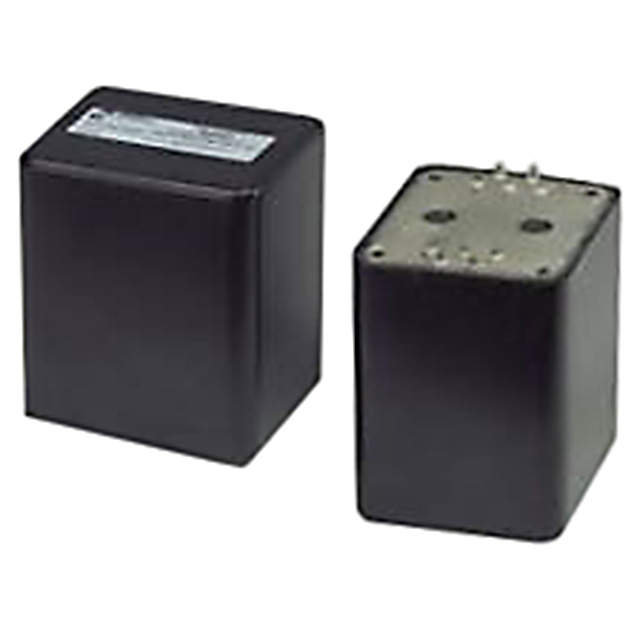

| Part number: | 1650PP |
| Description: | AUDIO XFMR 6.6KCT / 4, 8, 16 TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 3.880" L x 3.310" W (98.55mm x 84.07mm) |
| Mounting Type | Through Hole |
| Transformer Type | Push-Pull Potted, Ultra-Linear - Tube Output |
| Insertion Loss | ±1dB |
| Frequency Range | 30Hz ~ 30kHz |
| Voltage - Isolation | 2000V @ 1 Second |
| Height - Seated (Max) | 4.250" (107.95mm) |
| Impedance - Primary (Ohms) | 6.6kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 66.8Ohm, 160.5Ohm |
| DC Resistance (DCR) - Secondary | 230mOhm, 370mOhm |
| Frequency Response | ±1dB |
| Power Level | 60W |
|
