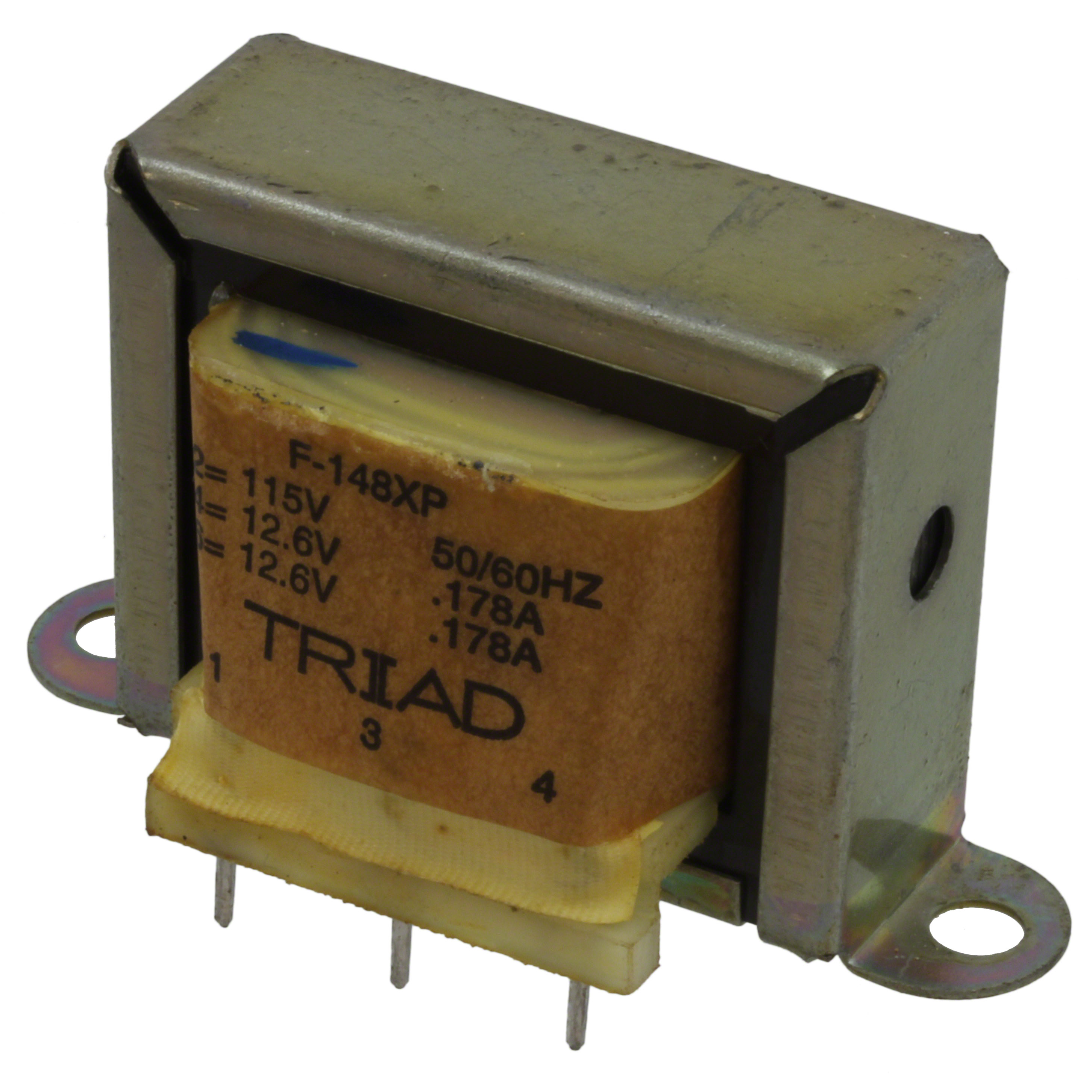

| Part number: | F-148XP |
| Description: | PWR XFMR LAMINATED 4.5VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 60.32mm L x 31.75mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 0.469 lb (212.73 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Power - Max | 4.5VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | Parallel 356mA, Series 178mA |
| Voltage - Primary | 115V |
| Height - Seated (Max) | 36.50mm |
| Voltage - Secondary (Full Load) | Parallel 12.6V, Series 25.2V |
| Center Tap | No |
|
