| Part number: | C3D04060E-TR |
| Description: | DIODE SIL CARB 600V 13.5A TO252 |
| Manufacturer | Wolfspeed |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wolfspeed" |

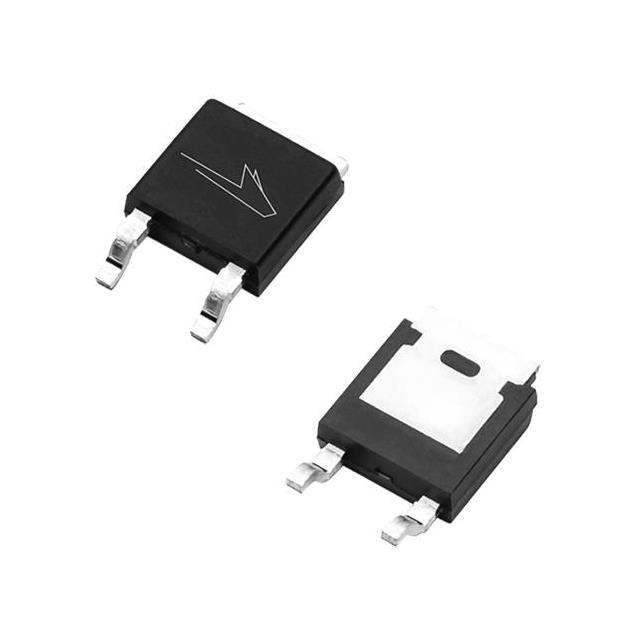

| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 251pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 13.5A |
| Supplier Device Package | TO-252-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 4 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
|
