| Part number: | BSO4804HUMA2 |
| Description: | MOSFET 2N-CH 30V 8A 8DSO |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

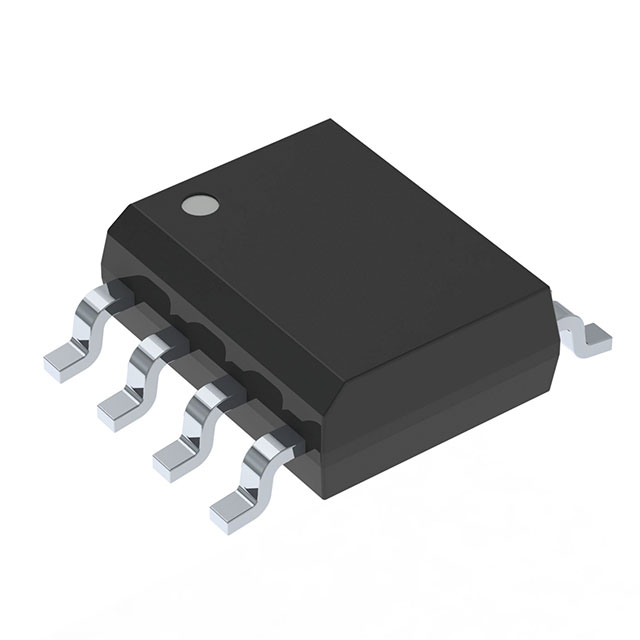

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2W |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 870pF @ 25V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 5V |
| FET Feature | Logic Level Gate |
| Vgs(th) (Max) @ Id | 2V @ 30µA |
| Supplier Device Package | PG-DSO-8 |
|
