| Part number: | SQJQ900E-T1_GE3 |
| Description: | MOSFET 2N-CH 40V 100A PPAK8X8 |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

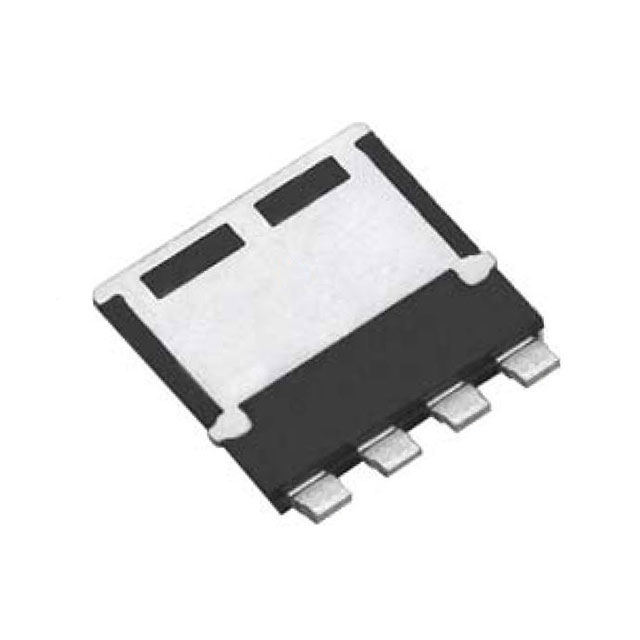

| Package / Case | PowerPAK® 8 x 8 Dual |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 75W |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 5900pF @ 20V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 20A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 120nC @ 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK® 8 x 8 Dual |
| Grade | Automotive |
| Qualification | AEC-Q101 |
|
