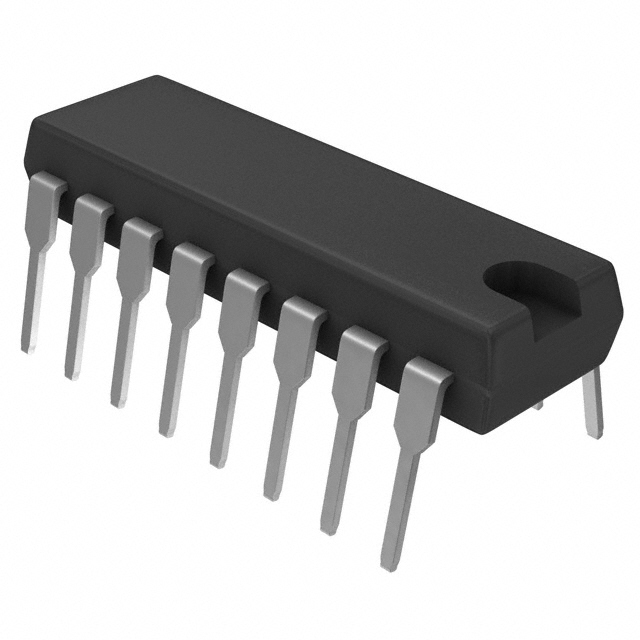

| Part number: | CD4009UBE |
| Description: | IC INVERTER 6CH 1-INP 16DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | Inverter |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 18V |
| Current - Output High, Low | 1.5mA, 24mA |
| Number of Inputs | 1 |
| Supplier Device Package | 16-PDIP |
| Input Logic Level - High | 4V ~ 12.5V |
| Input Logic Level - Low | 1V ~ 2.5V |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Number of Circuits | 6 |
| Current - Quiescent (Max) | 4 µA |
|
