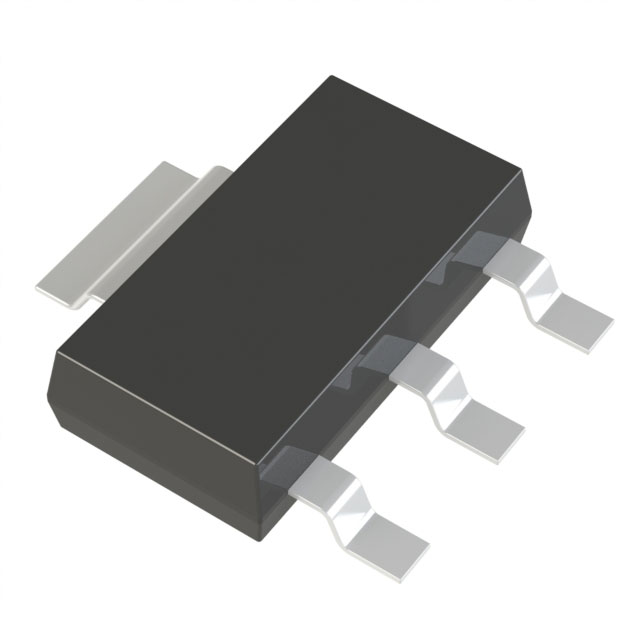

| Part number: | ZXTP01500BGQTC |
| Description: | TRANS PNP 500V 0.15A SOT223 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Transistor Type | PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 10V |
| Frequency - Transition | 60MHz |
| Supplier Device Package | SOT-223-3 |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 500 V |
| Power - Max | 3 W |
| Qualification | AEC-Q101 |
|
