| Part number: | ECW-FD2J684J |

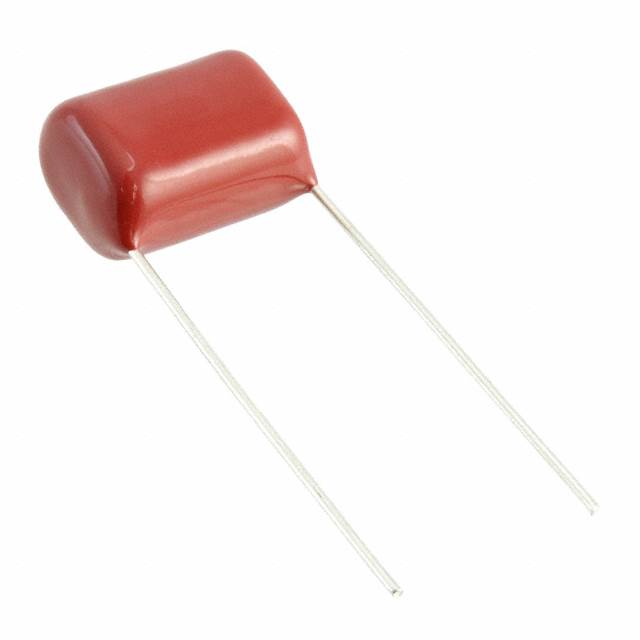

| Description: | CAP FILM 0.68UF 5% 630VDC RADIAL |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±5% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 141V |
| Voltage Rating - DC | 630V |
| Height - Seated (Max) | 0.618" (15.70mm) |
| Capacitance | 0.68 µF |
| Size / Dimension | 0.701" L x 0.366" W (17.80mm x 9.30mm) |
|
