| Part number: | BTS6142DNT |
| Description: | IC PWR SWITCH N-CHAN 1:1 TO252-5 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Features | Auto Restart |

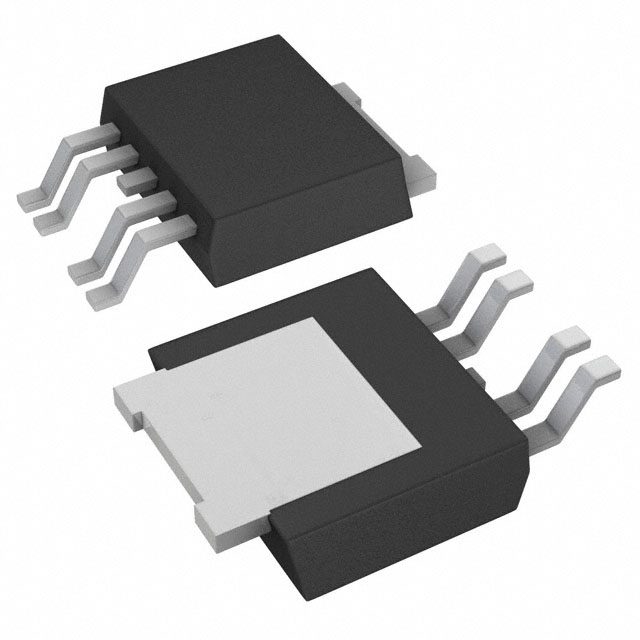

| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | On/Off |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 5.5V ~ 38V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 7A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | PG-TO252-5-11 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Grade | Automotive |
| Qualification | AEC-Q100 |
|
