| Part number: | DCP4I061009HD4KSSD |

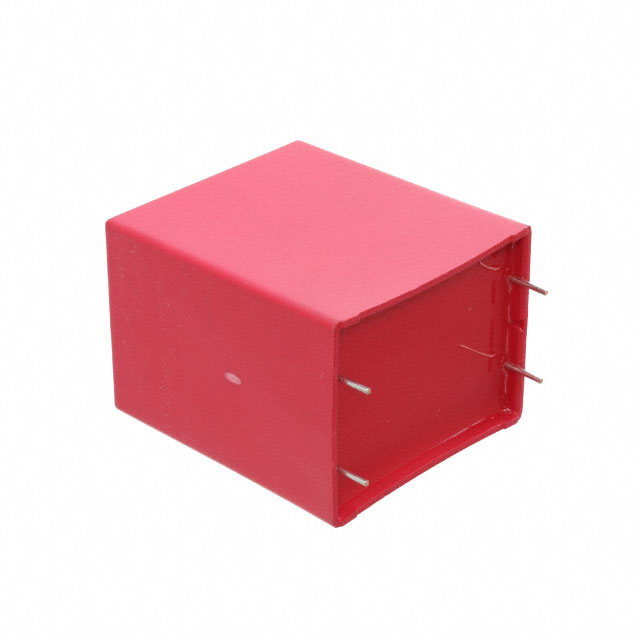

| Description: | CAP FILM 100UF 10% 600VDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 2.067" (52.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 600V |
| Height - Seated (Max) | 2.165" (55.00mm) |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 2.6 mOhms |
| Size / Dimension | 2.244" L x 1.772" W (57.00mm x 45.00mm) |
|
