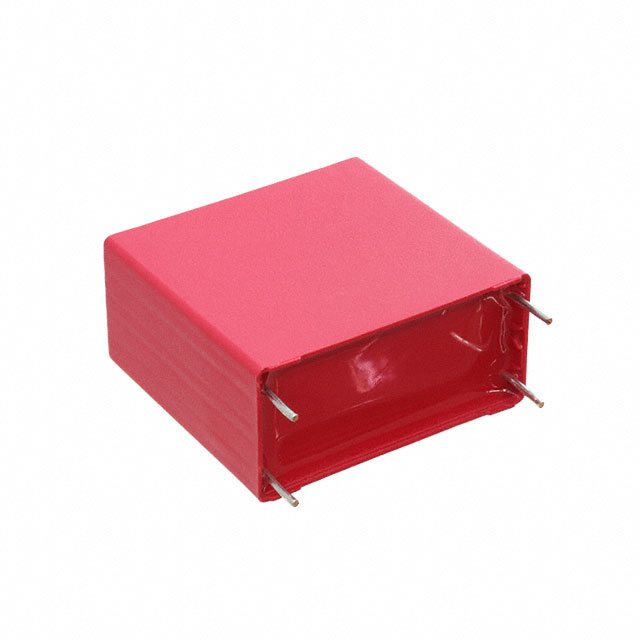

| Part number: | DCP4R245006JD2KSSD |
| Description: | CAP FILM 5UF 10% 1.3KVDC RADIAL |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 162 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1300V (1.3kV) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Capacitance | 5 µF |
| ESR (Equivalent Series Resistance) | 14 mOhms |
| Size / Dimension | 1.240" L x 0.787" W (31.50mm x 20.00mm) |
|
