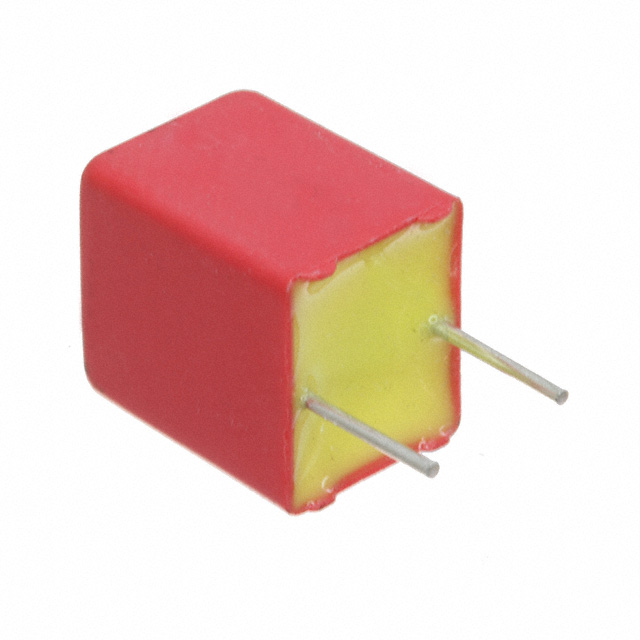

| Part number: | FKP2F021501L00KSSD |
| Description: | CAP FILM 0.015UF 10% 250VDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Lead Spacing | 0.197" (5.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP) |
| Voltage Rating - AC | 160V |
| Voltage Rating - DC | 250V |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Capacitance | 0.015 µF |
| Size / Dimension | 0.283" L x 0.335" W (7.20mm x 8.50mm) |
|
