| Part number: | FKP3G021504C00KSSD |

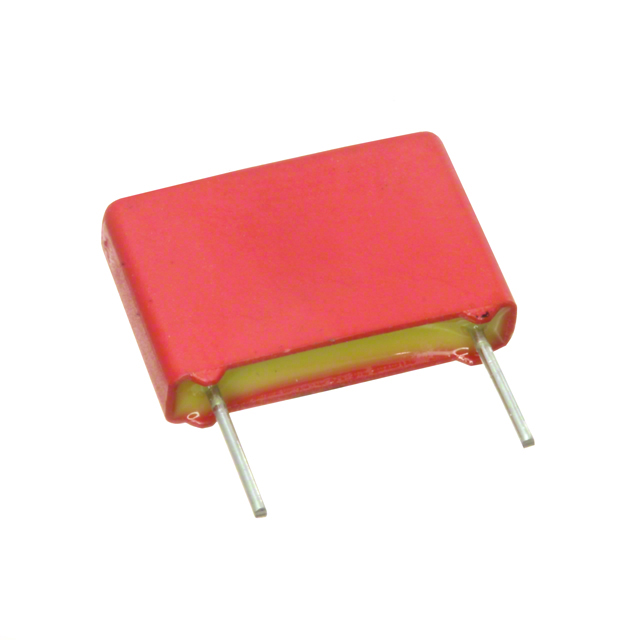

| Description: | CAP FILM 0.015UF 10% 400VDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP) |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 400V |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Capacitance | 0.015 µF |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
|
