| Part number: | MKP1V022205I00MSSD |

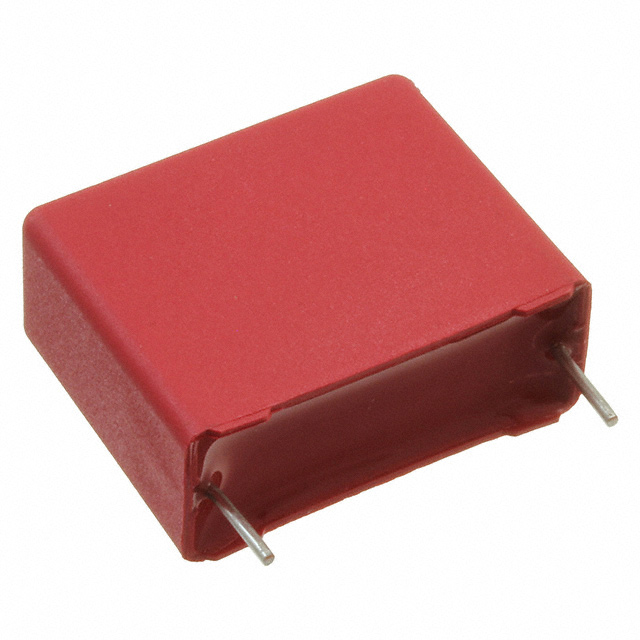

| Description: | CAP FILM 0.022UF 20% 2.5KVDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 561 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±20% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 110°C |
| Applications | High Pulse, DV/DT |
| Lead Spacing | 0.886" (22.50mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2500V (2.5kV) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Capacitance | 0.022 µF |
| Size / Dimension | 1.043" L x 0.433" W (26.50mm x 11.00mm) |
|
