| Part number: | MKP2D023301B00KSSD |

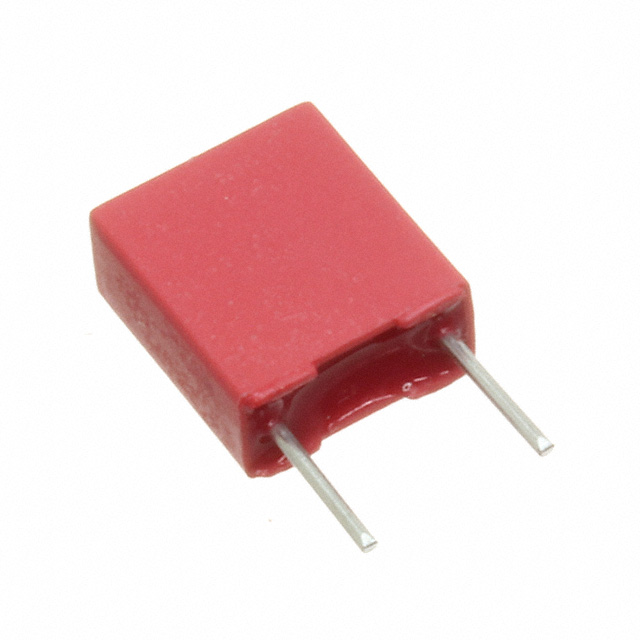

| Description: | CAP FILM 0.033UF 10% 100VDC RAD |
| Manufacturer | WIMA |
| Encapsulation | Bulk |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WIMA" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 100°C |
| Applications | Automotive; High Frequency, Switching |
| Lead Spacing | 0.197" (5.00mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 63V |
| Voltage Rating - DC | 100V |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Capacitance | 0.033 µF |
| Size / Dimension | 0.283" L x 0.118" W (7.20mm x 3.00mm) |
|
