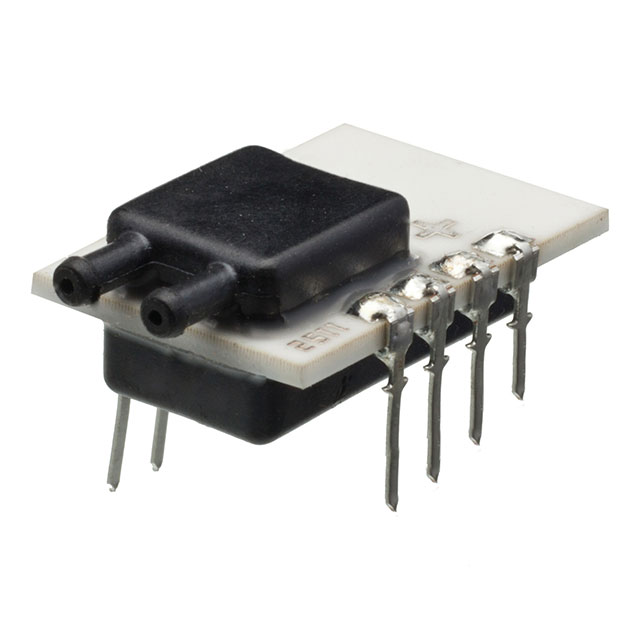

| Part number: | P1J-5MB-8X16PA |
| Description: | SENSOR 0.07PSID 0.08" 14BIT |
| Manufacturer | Sensata Technologies – Kavlico Pressure Sensors |
| Encapsulation | Tray |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sensata Technologies – Kavlico Pressure Sensors" |
| Features | Amplified Output, Temperature Compensated |
| Package / Case | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 0.07PSI (0.5kPa) |
| Pressure Type | Differential |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.08" (1.92mm) Tube, Dual |
| Applications | Board Mount |
| Port Style | Barbed |
| Maximum Pressure | 1.02PSI (7kPa) |
|
