| Part number: | Q4004F41 |

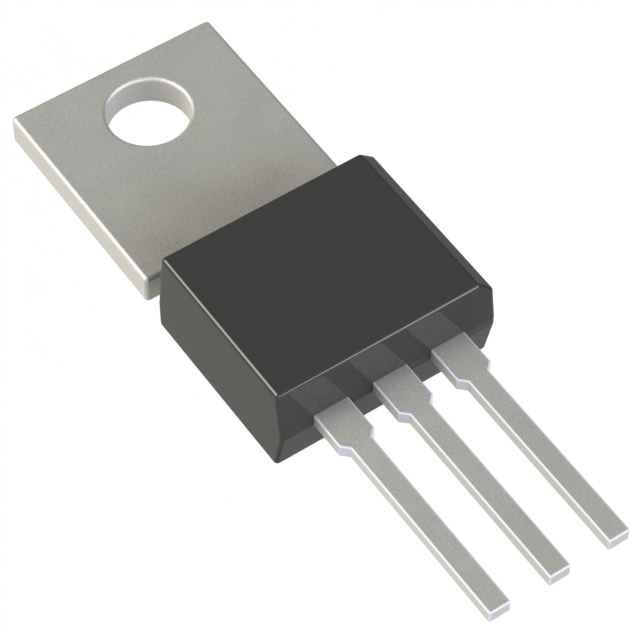

| Description: | TRIAC 400V 4A TO202 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-202 Long Tab |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 46A, 55A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Supplier Device Package | TO-202 |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 400 V |
|
