| Part number: | Q6025R5 |
| Description: | TRIAC 600V 25A TO220 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

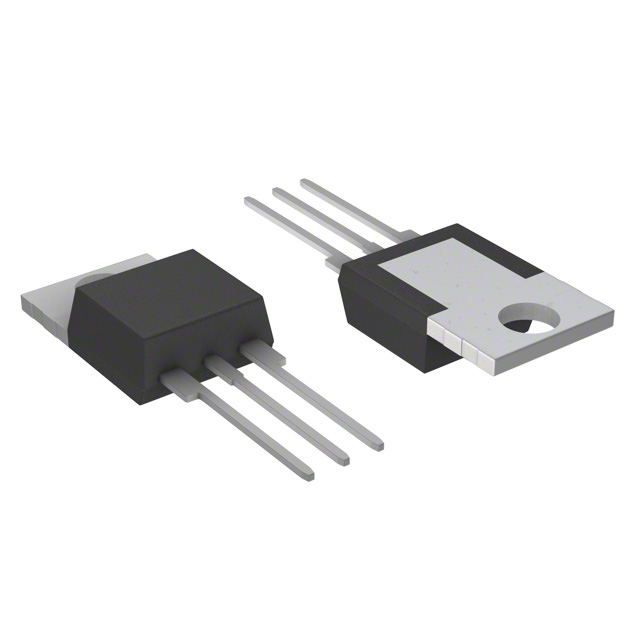

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220 Non-Isolated Tab |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 600 V |
|
