| Part number: | PC792A-1C-C3-12S-N-X |

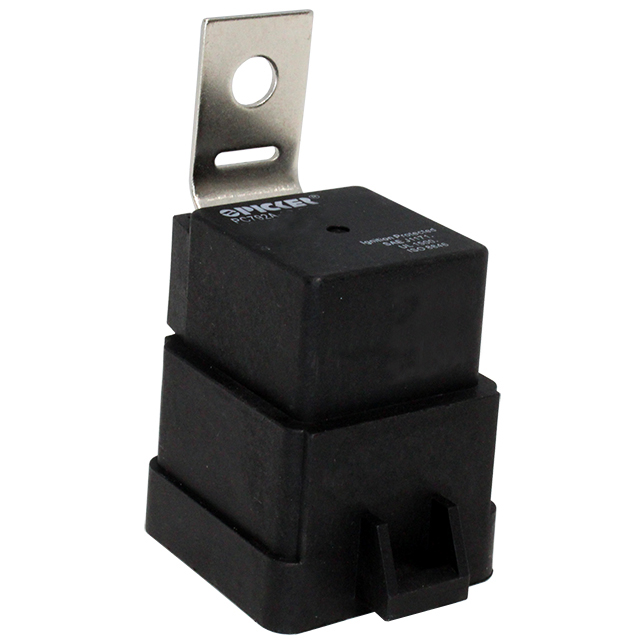

| Description: | RELAY AUTOMOTIVE SPDT 40A 12V |
| Manufacturer | Picker Components |
| Encapsulation | Bag |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Picker Components" |
| Features | Sealed - Fully |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Coil Current | 133.3 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 75VDC - Max |
| Must Release Voltage | 1.8 VDC |
| Must Operate Voltage | 7.8 VDC |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Coil Power | 1.6W |
| Coil Resistance | 90 Ohms |
|
