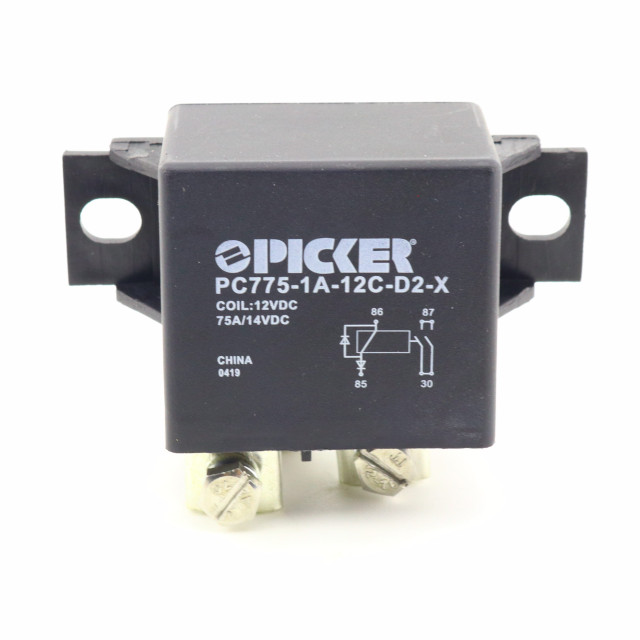

| Part number: | PC775-1A-12C-D2-X |
| Description: | RELAY AUTOMOTIVE SPST 75A 12V |
| Manufacturer | Picker Components |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Picker Components" |
| Features | Diode |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Screw Terminal |
| Coil Current | 240 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Tin Oxide (AgSnO), Tungsten (W) |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 75 A |
| Switching Voltage | 32VDC - Max |
| Must Release Voltage | 2.4 VDC |
| Must Operate Voltage | 7.8 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Coil Power | 2.9W |
| Coil Resistance | 50 Ohms |
|
