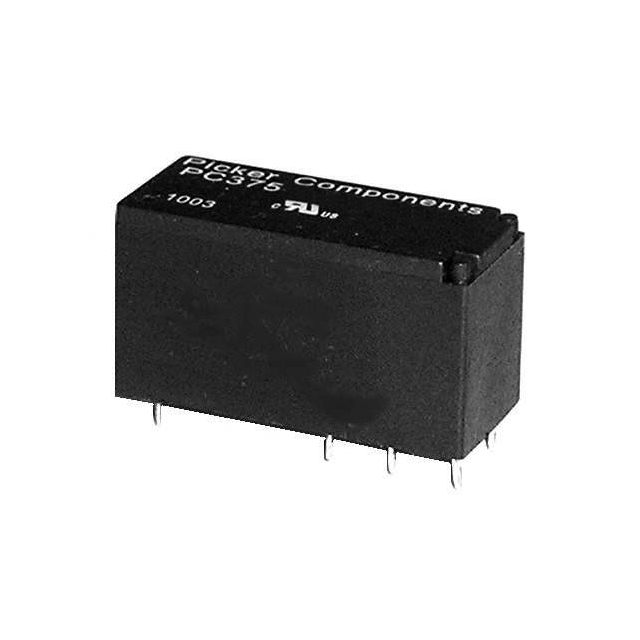

| Part number: | PC375-1C-12S1-X |
| Description: | RELAY GEN PURPOSE SPDT 16A 12V |
| Manufacturer | Picker Components |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Picker Components" |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Coil Current | 34.2 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 380VAC, 110VDC - Max |
| Must Release Voltage | 1.2 VDC |
| Must Operate Voltage | 8.4 VDC |
| Operate Time | 15 ms |
| Release Time | 8 ms |
| Coil Resistance | 351 Ohms |
| Coil Insulation | Class F |
| Load - Max Switching | 6080VA, 1760W |
|
