| Part number: | 1010732CHCO |

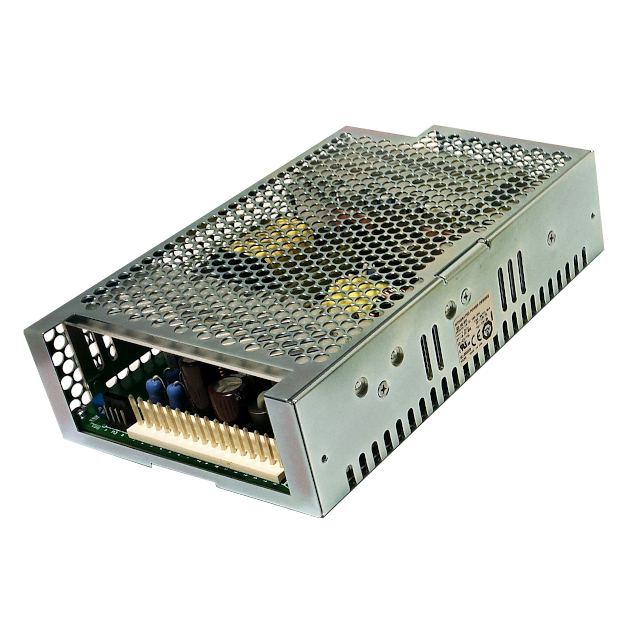

| Description: | DC/DC CONVERTER +/-12V 185W |
| Manufacturer | Integrated Power Designs |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Integrated Power Designs" |
| Power (Watts) | 185W |
| Size / Dimension | 7.23" L x 4.36" W x 1.74" H (183.6mm x 110.7mm x 44.2mm) |
| Mounting Type | Chassis Mount |
| Type | Enclosed |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial), Medical |
| Voltage - Input (Max) | 72V |
| Approval Agency | CE, cURus, TUV, UKCA |
| Efficiency | 84% |
| Current - Output (Max) | 10A, 6A |
| Voltage - Input (Min) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Number of Outputs | 2 |
| Standard Number | 60601-1; 62368-1 |
|
