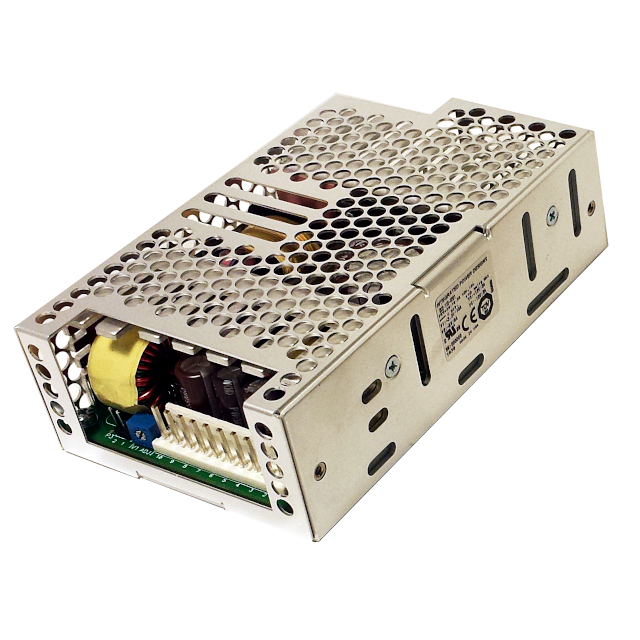

| Part number: | 1010629CHCO |
| Description: | DC/DC CONVERTER +/-15V 105W |
| Manufacturer | Integrated Power Designs |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Integrated Power Designs" |
| Power (Watts) | 105W |
| Size / Dimension | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) |
| Mounting Type | Chassis Mount |
| Type | Enclosed |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial), Medical |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE, cURus, TUV, UKCA |
| Efficiency | 82% |
| Current - Output (Max) | 4A, 3A |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Number of Outputs | 2 |
| Standard Number | 60601-1; 62368-1 |
|
