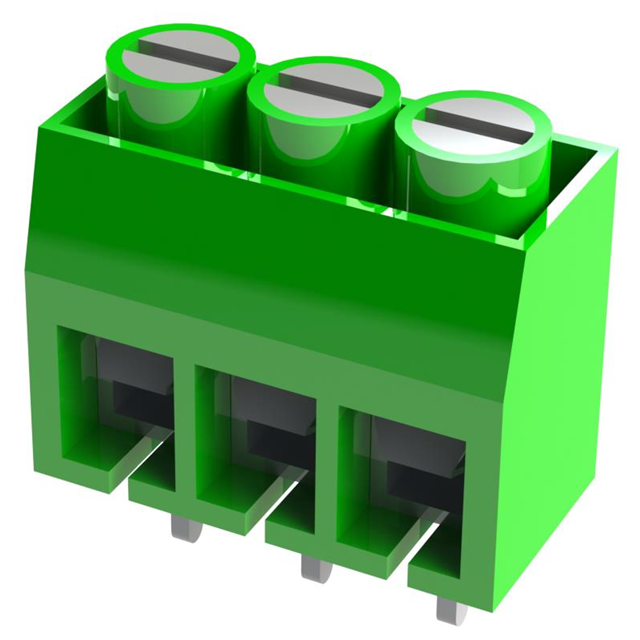

| Part number: | TBW-08-197-16-GR-LF |
| Description: | Terminal Blocks |
| Manufacturer | Major League Electronics |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Major League Electronics" |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 12-18 AWG |
| Pitch | 0.197" (5.00mm) |
| Operating Temperature | -33°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 16 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.39 Nm (3.47 Lb-In) |
| Screw Thread | M2.5 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Current | 10 A |
| Number of Levels | 1 |
| Voltage | 250 V |
|
