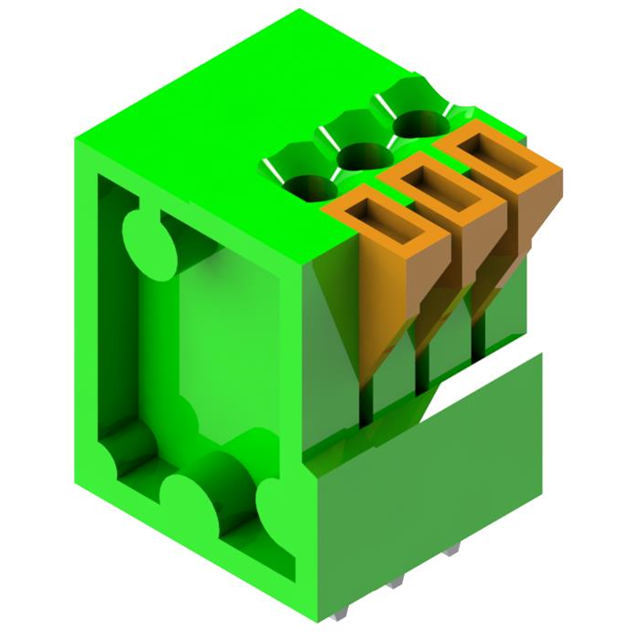

| Part number: | TBS-01-100-08-GR-LF |
| Description: | Terminal Blocks |
| Manufacturer | Major League Electronics |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Major League Electronics" |
| Features | Lever Actuated |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 20-26 AWG |
| Pitch | 0.100" (2.54mm) |
| Operating Temperature | -33°C ~ 105°C |
| Mating Orientation | Vertical with Board |
| Positions Per Level | 8 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Steel, Stainless |
| Wire Termination | Screwless - Push Button Clamp |
| Current | 2 A |
| Number of Levels | 1 |
| Voltage | 150 V |
|
