| Part number: | 2604-3304 |

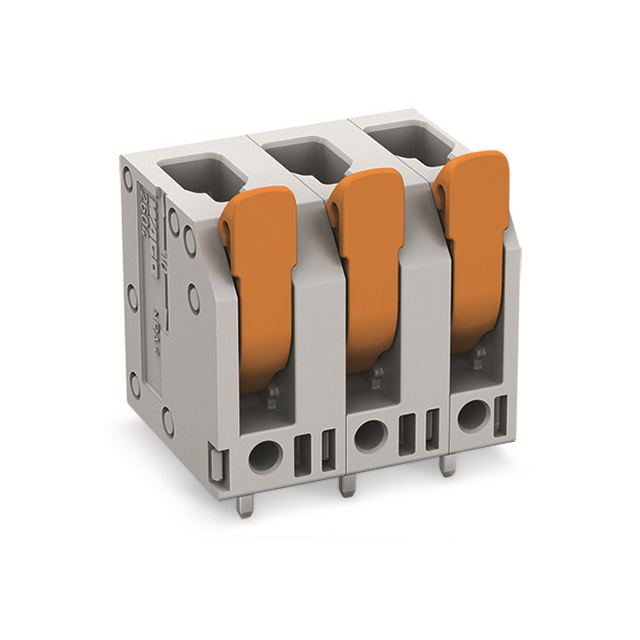

| Description: | PCB TERMINAL BLOCK; LEVER; 4 MM; |
| Manufacturer | WAGO |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "WAGO" |
| Features | Lever Actuated |
| Color | Gray |
| Mounting Type | Through Hole |
| Wire Gauge | 12-24 AWG |
| Pitch | 0.295" (7.50mm) |
| Operating Temperature | -60°C ~ 105°C |
| Mating Orientation | Vertical with Board |
| Positions Per Level | 4 |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Clamp Material - Plating | Steel - Nickel Plated |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Current | 20 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
