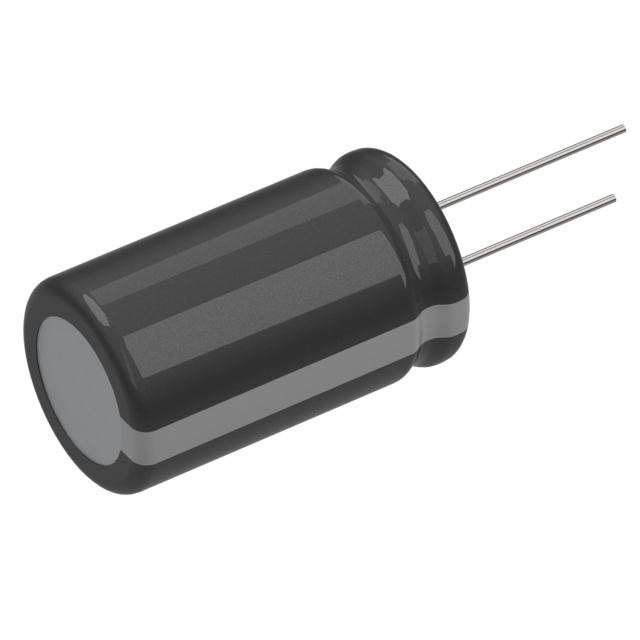

| Part number: | 25YXS1000MEFC10X20 |
| Description: | CAP ALUM 1000UF 20% 25V RADIAL |
| Manufacturer | Rubycon |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rubycon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 25 V |
| Impedance | 37 mOhms |
| Ripple Current @ Low Frequency | 1.032 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.72 A @ 100 kHz |
|
