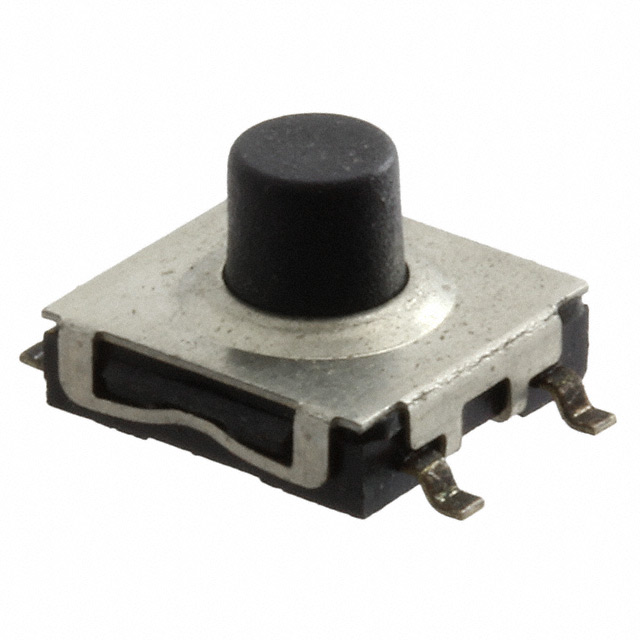

| Part number: | 1571294-3 |
| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Encapsulation | Bag |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity ALCOSWITCH Switches" |
| Features | Sealed - Fully |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -35°C ~ 85°C |
| Termination Style | Gull Wing |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Standard |
| Operating Force | 160gf |
| Outline | 7.60mm x 7.30mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 5.00mm |
| Actuator Orientation | Top Actuated |
|
