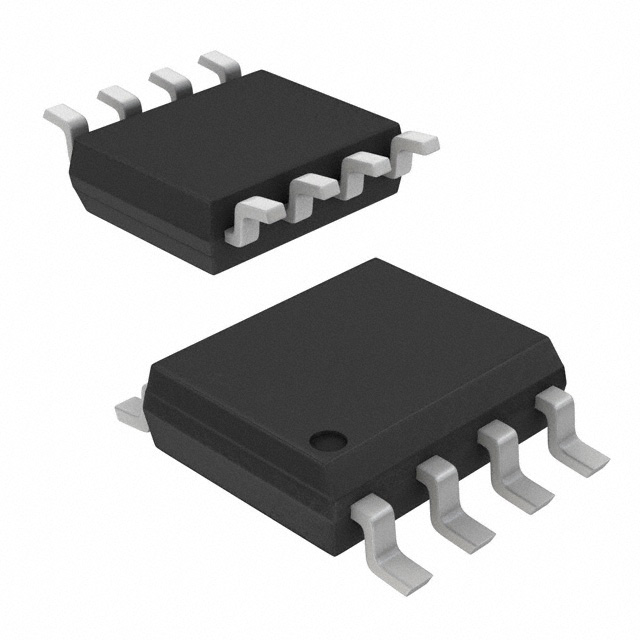

| Part number: | PI5A319AW |
| Description: | IC SWITCH SPDT X 1 18OHM 8SOIC |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Bag |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 18Ohm |
| -3db Bandwidth | 200MHz |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Charge Injection | 3pC |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Switch Time (Ton, Toff) (Max) | 20ns, 10ns |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 80nA |
| Number of Circuits | 1 |
|
