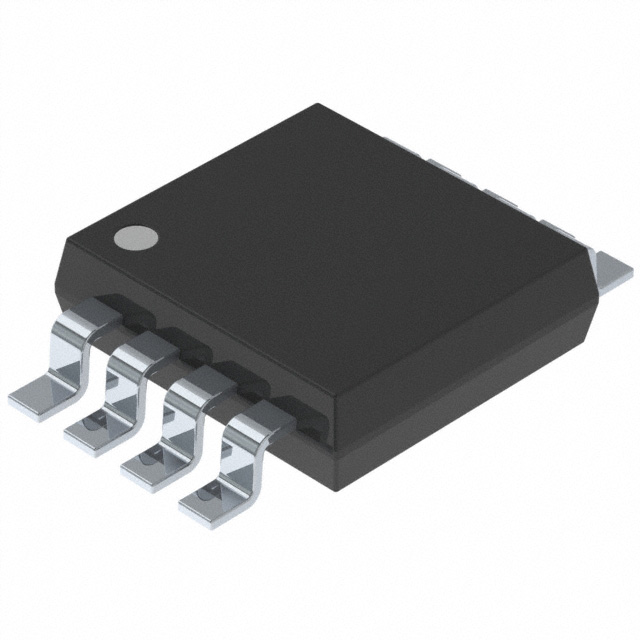

| Part number: | PS301CUA |
| Description: | IC SWITCH SPST-NOX1 60OHM 8MSOP |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tube |
| Quantity | 160 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 60Ohm |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply, Single (V+) | 2.5V ~ 16V |
| Charge Injection | 1pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Switch Time (Ton, Toff) (Max) | 150ns, 100ns |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 1 |
|
