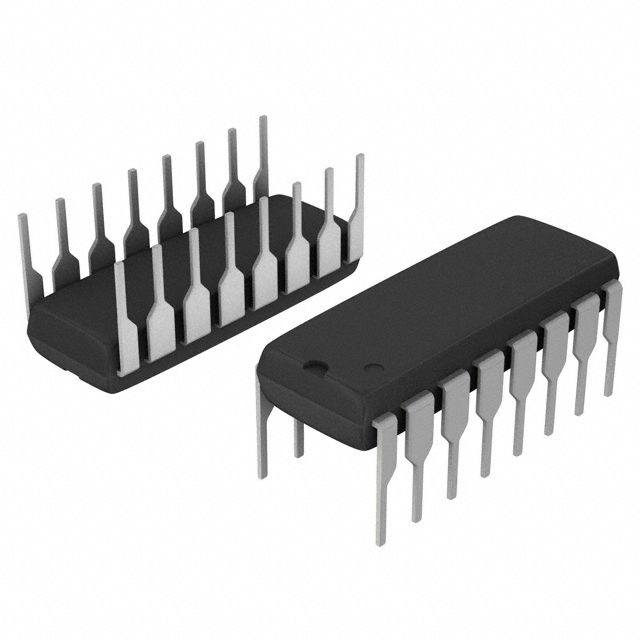

| Part number: | PS392CPE |
| Description: | IC SWITCH SPST-NOX4 45OHM 16DIP |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tray |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 70°C (TA) |
| On-State Resistance (Max) | 45Ohm |
| -3db Bandwidth | 100MHz |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply, Single (V+) | 3V ~ 15V |
| Voltage - Supply, Dual (V±) | ±3V ~ 8V |
| Charge Injection | 3pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
|
