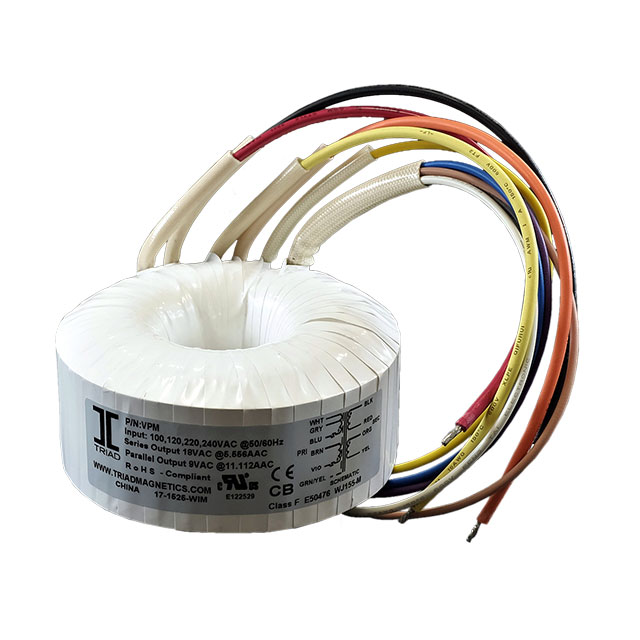

| Part number: | VPM24-1040 |
| Description: | PWR XFMR TOROIDAL 25VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 84.00mm Dia |
| Mounting Type | Chassis Mount |
| Type | Toroidal |
| Weight | 1.1 lbs (499 g) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual, Multiple Taps |
| Secondary Winding(s) | Dual |
| Power - Max | 25VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 2.08A, Series 1.04A |
| Voltage - Primary | 100V, 120V, 220V, 240V |
| Height - Seated (Max) | 37.00mm |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Center Tap | No |
|
