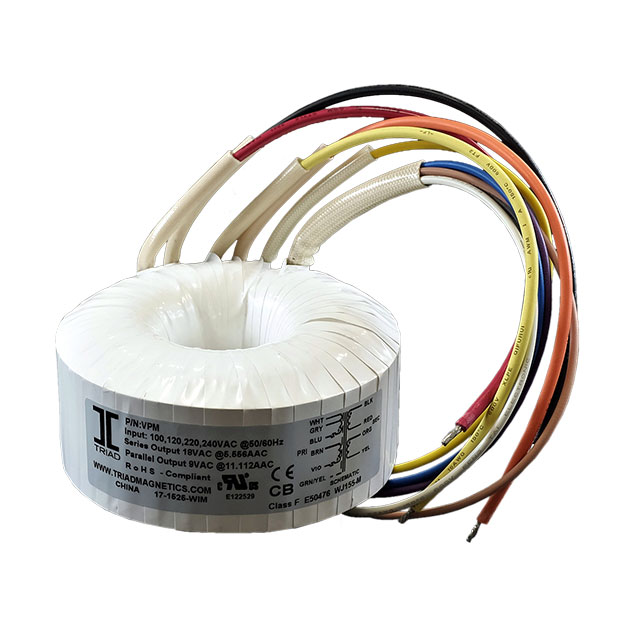

| Part number: | VPM36-4440 |
| Description: | PWR XFMR TOROIDAL 160VA CHAS MT |
| Manufacturer | Triad Magnetics |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Triad Magnetics" |
| Size / Dimension | 113.00mm Dia |
| Mounting Type | Chassis Mount |
| Type | Toroidal |
| Weight | 4.2 lbs (1.9 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual, Multiple Taps |
| Secondary Winding(s) | Dual |
| Power - Max | 160VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 8.88A, Series 4.44A |
| Voltage - Primary | 100V, 120V, 220V, 240V |
| Height - Seated (Max) | 52.00mm |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Center Tap | No |
|
