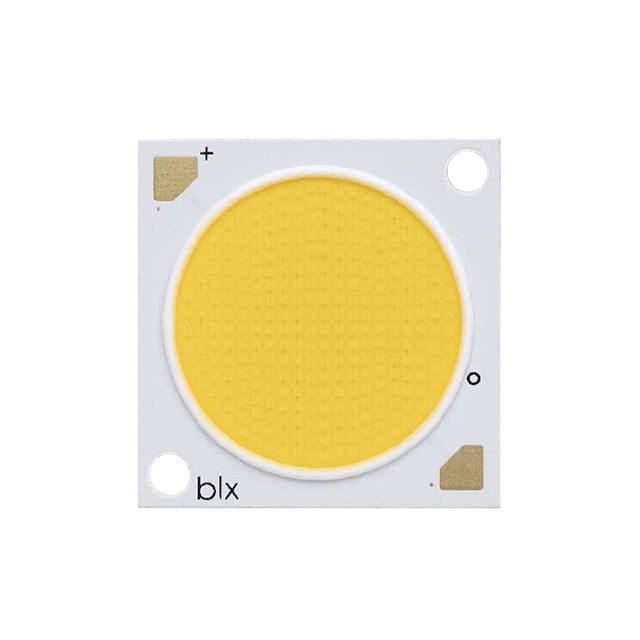

| Part number: | BXRE-50C6501-B-73 |
| Description: | LED COB V22 CL WHT SQUARE 5000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Tube |
| Quantity | 15 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Cool |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 50.7V |
| Height | 1.70mm |
| Current - Test | 1.17A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 2.34A |
| Lumens/Watt @ Current - Test | 164 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Light Emitting Surface (LES) | 22.60mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 9694lm (Typ) |
|
