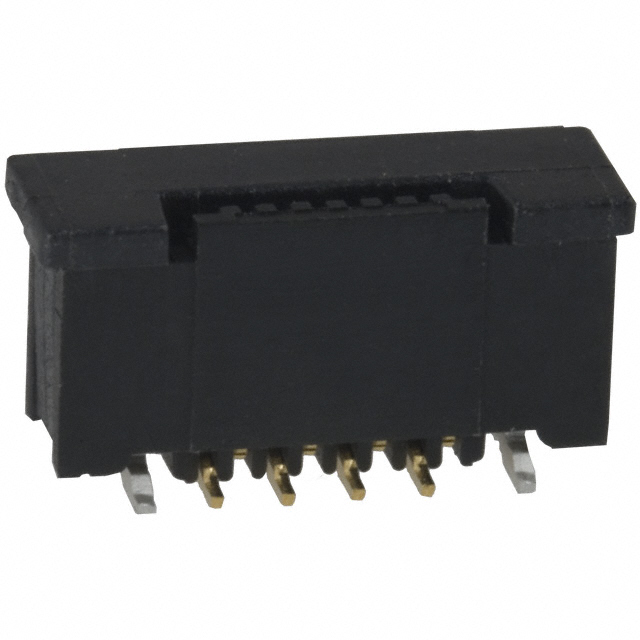

| Part number: | 62674-081121ALF |
| Description: | CONN FFC FPC VERT 8POS 0.5MM SMD |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Zero Insertion Force (ZIF) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Pitch | 0.020" (0.50mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Kinked Pin |
| Height Above Board | 0.161" (4.10mm) |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Plastic, Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Plastic, Glass Filled |
| Cable End Type | Straight or Tapered |
| Housing Color | Black |
| Mating Cycles | 20 |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
|
