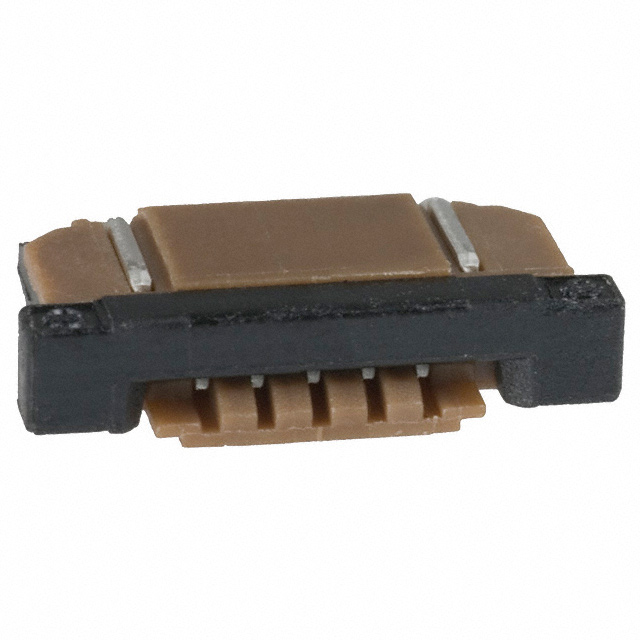

| Part number: | SFW5R-1STE1LF |
| Description: | CONN FFC FPC BOTTOM 5POS 1MM R/A |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Voltage Rating | 100V |
| Current Rating (Amps) | 1A |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 5 |
| Pitch | 0.039" (1.00mm) |
| Operating Temperature | -55°C ~ 105°C |
| Termination | Solder |
| Height Above Board | 0.106" (2.70mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Notched |
| Housing Color | Brown |
| Actuator Color | Brown |
| Mating Cycles | 20 |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Bottom |
|
