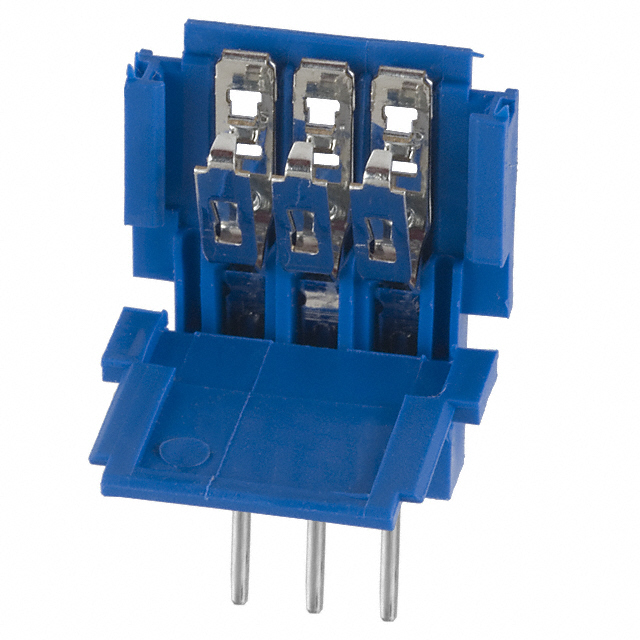

| Part number: | 66226-003LF |
| Description: | CONN FFC HEADER 3POS 2.54MM |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Tray |
| Quantity | 85 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Contact Finish | Tin |
| Voltage Rating | 500V |
| Current Rating (Amps) | 2A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Pitch | 0.100" (2.54mm) |
| Operating Temperature | -65°C ~ 105°C |
| Termination | Solder |
| Contact Finish Thickness | 100.0µin (2.54µm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Nickel Alloy |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Housing Material | Thermoplastic |
| Cable End Type | Straight, Tapered |
| Housing Color | Blue |
| Actuator Color | Black |
| Mating Cycles | 100 |
| Flat Flex Type | FFC |
| Connector/Contact Type | Header |
|
